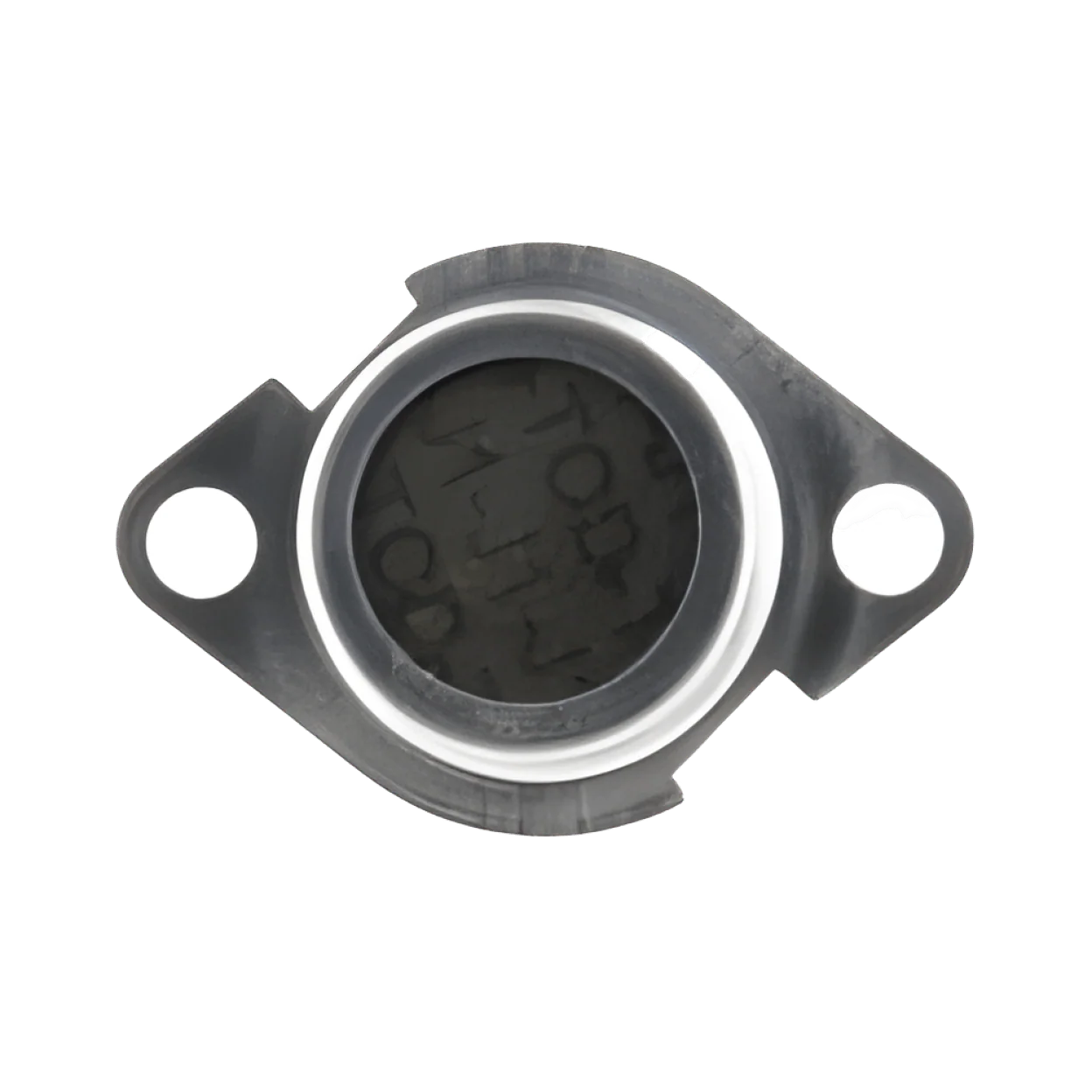

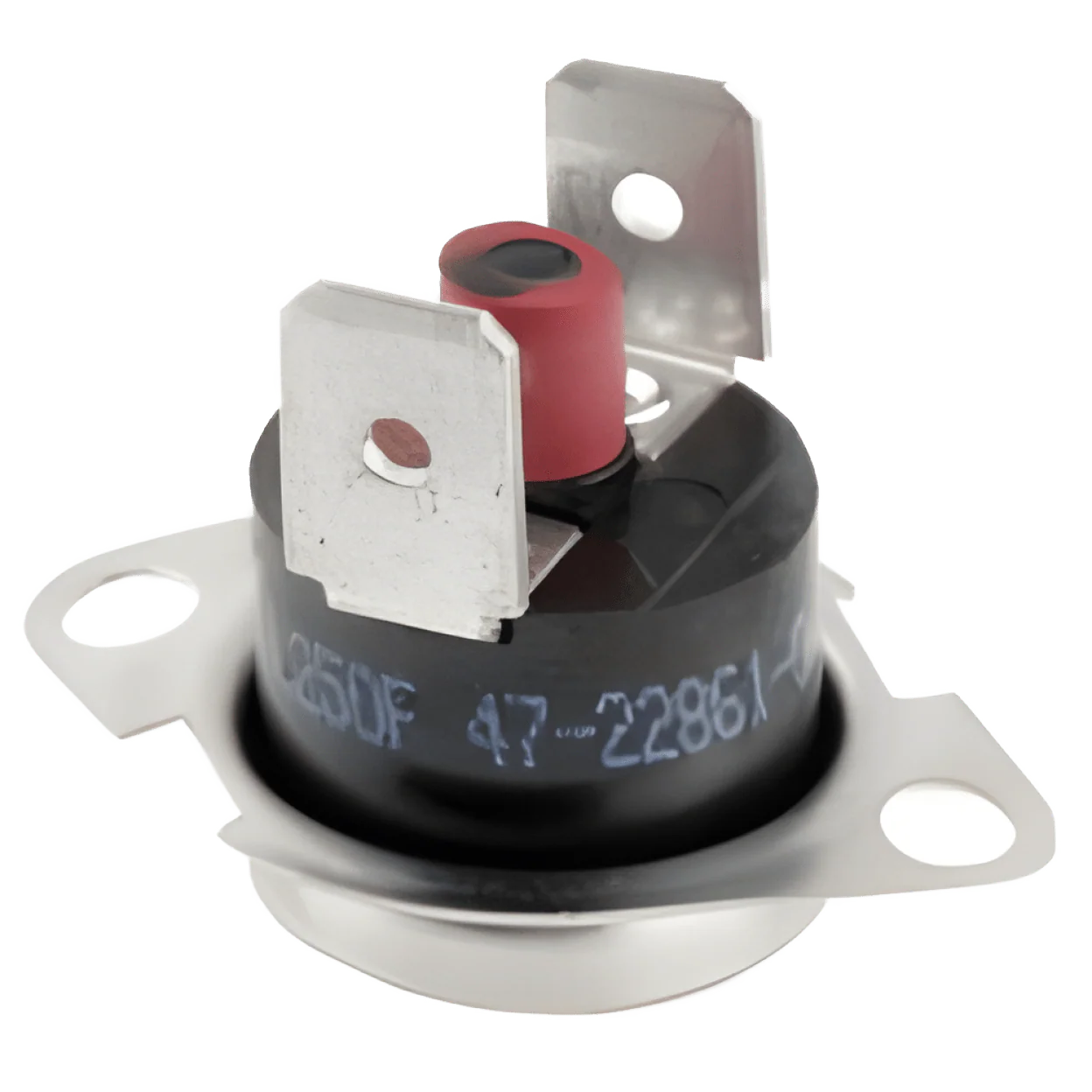

Rheem SPST 15/10A 120/230VAC Manual Reset General Purpose Limit Switch, Red

Rheem SPST 15/10A 120/230VAC Manual Reset General Purpose Limit Switch, Red

Limit Switch, Type: Manual Reset, General Purpose, Voltage Rating: 120/230VAC, Ampere Rating: 15/10A, Number of Poles: 1, Switch Type: SPST, Connection: 1/4 inch, Connection End: Quick, Mounting: Flanged Airstream, Contact Orientation: Normally Closed, Disc Face: Exposed, Mounting Insertion Depth: 3/16 inch max, Color: Red, TOD Switch Series: 36T, Open Temperature: 250 Deg F, Tolerance Open Temperature: +/-12 Deg F, Close Temperature: -31 Deg F (Auto), Minimum Manual Reset Temperature: 130 Deg F

Select Style
From $18.33
Rheem SPST 15/10A 120/230VAC Manual Reset General Purpose Limit Switch, Red—
$18.33

Product Information

Shipping & Returns

Description

Limit Switch, Type: Manual Reset, General Purpose, Voltage Rating: 120/230VAC, Ampere Rating: 15/10A, Number of Poles: 1, Switch Type: SPST, Connection: 1/4 inch, Connection End: Quick, Mounting: Flanged Airstream, Contact Orientation: Normally Closed, Disc Face: Exposed, Mounting Insertion Depth: 3/16 inch max, Color: Red, TOD Switch Series: 36T, Open Temperature: 250 Deg F, Tolerance Open Temperature: +/-12 Deg F, Close Temperature: -31 Deg F (Auto), Minimum Manual Reset Temperature: 130 Deg F
