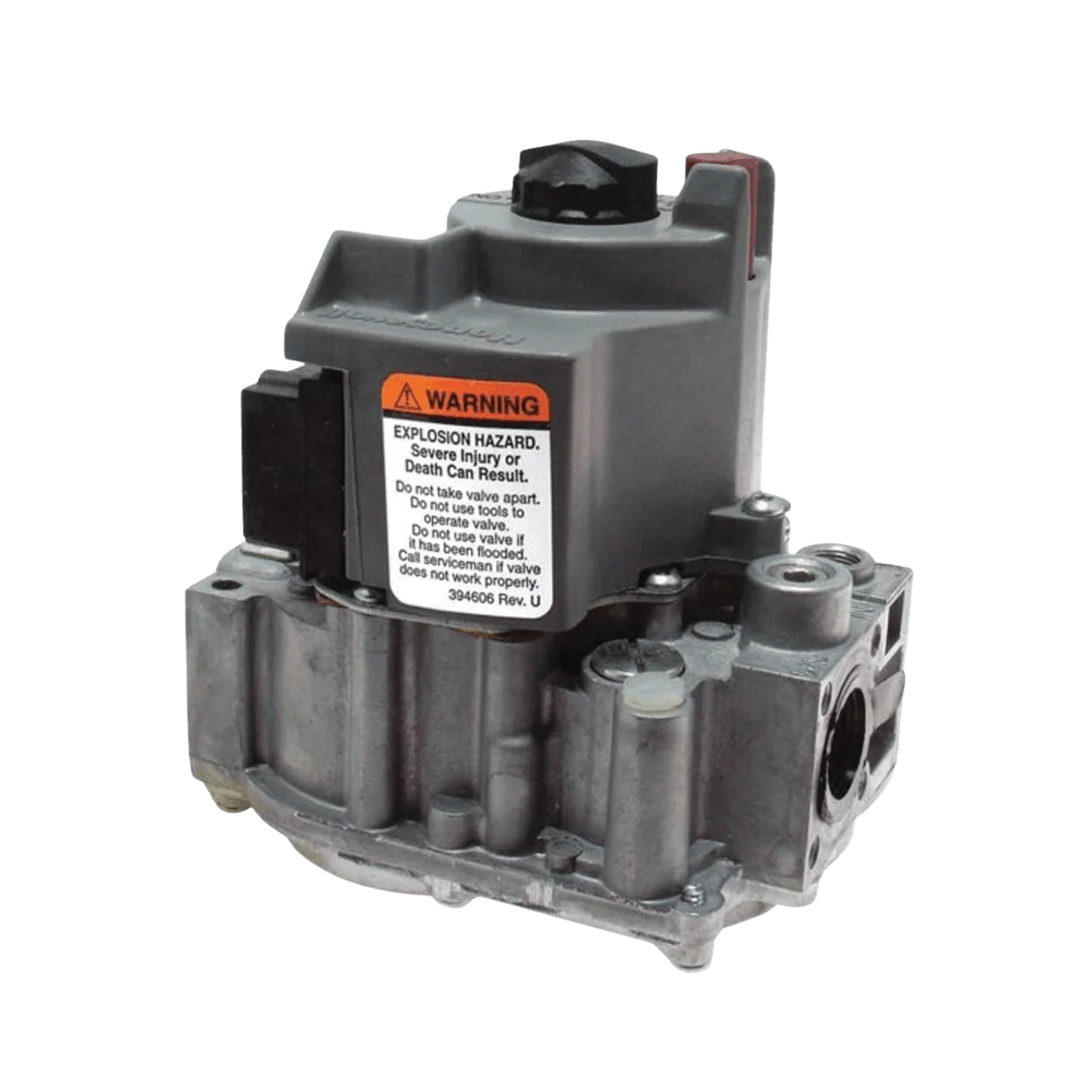

Rheem VR8200 Series 1-Stage Valve, 1/2 inch Nominal, NPT

Upgrade your heating system with the Rheem® VR8200 Series 1-Stage Gas Valve, a reliable 24V combination gas control designed for Rheem® RGDG, RGLG, and RGLH gas furnaces. Engineered for standing pilot ignition systems, this compact gas valve features dual automatic safety shut-off valves, an adjustable servo pressure regulator, and LITE-RITE OFF-PILOT-ON lighting sequence for dependable furnace performance and enhanced safety. The VR8200 series maintains consistent gas output pressure even under fluctuating gas supply conditions and includes accessible top-side adjustments, wiring connections, and pilot outlet for easier installation and servicing. Compatible with ECO connectors and designed to meet codes requiring dual safety shut-off, this valve supports natural gas applications with included LP and natural gas conversion spring kits for added versatility. Ideal for residential and light commercial HVAC systems requiring reliable, efficient gas flow control.

• Valve Type: 1-Stage Combination Gas Valve
• Connection Size: 1/2 inch NPT
• Fuel Type: Natural Gas
• Ignition Type: Standing Pilot
• Voltage: 24 VAC
• Capacity: 150,000 BTU/hr
• Operating Temperature: 0 Deg F to 175 Deg F
• Dimensions: 2-11/16 inch W x 5-3/16 inch H x 4-1/8 inch D
• Includes: Safety shut-off, manual valve, pressure regulator, pilot adjustment, LPG spring kit (60-22513-03), and natural gas spring kit (60-23430-01)
• Compatible With: Rheem® Model RGDG, RGLG, and RGLH Gas Furnaces
